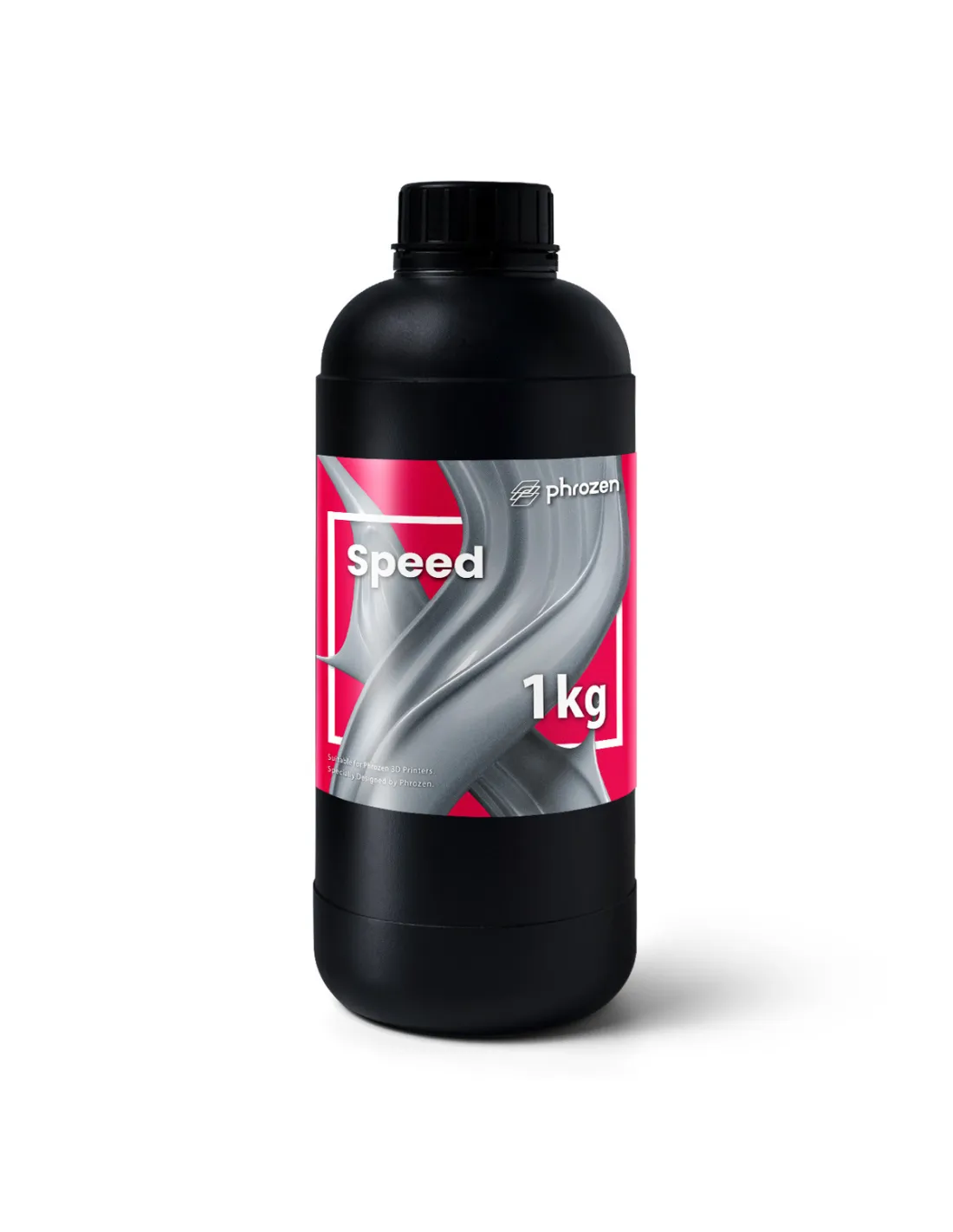

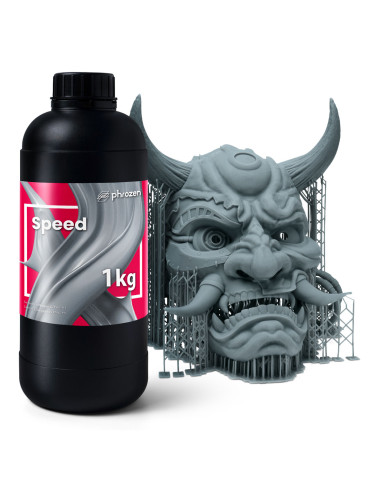

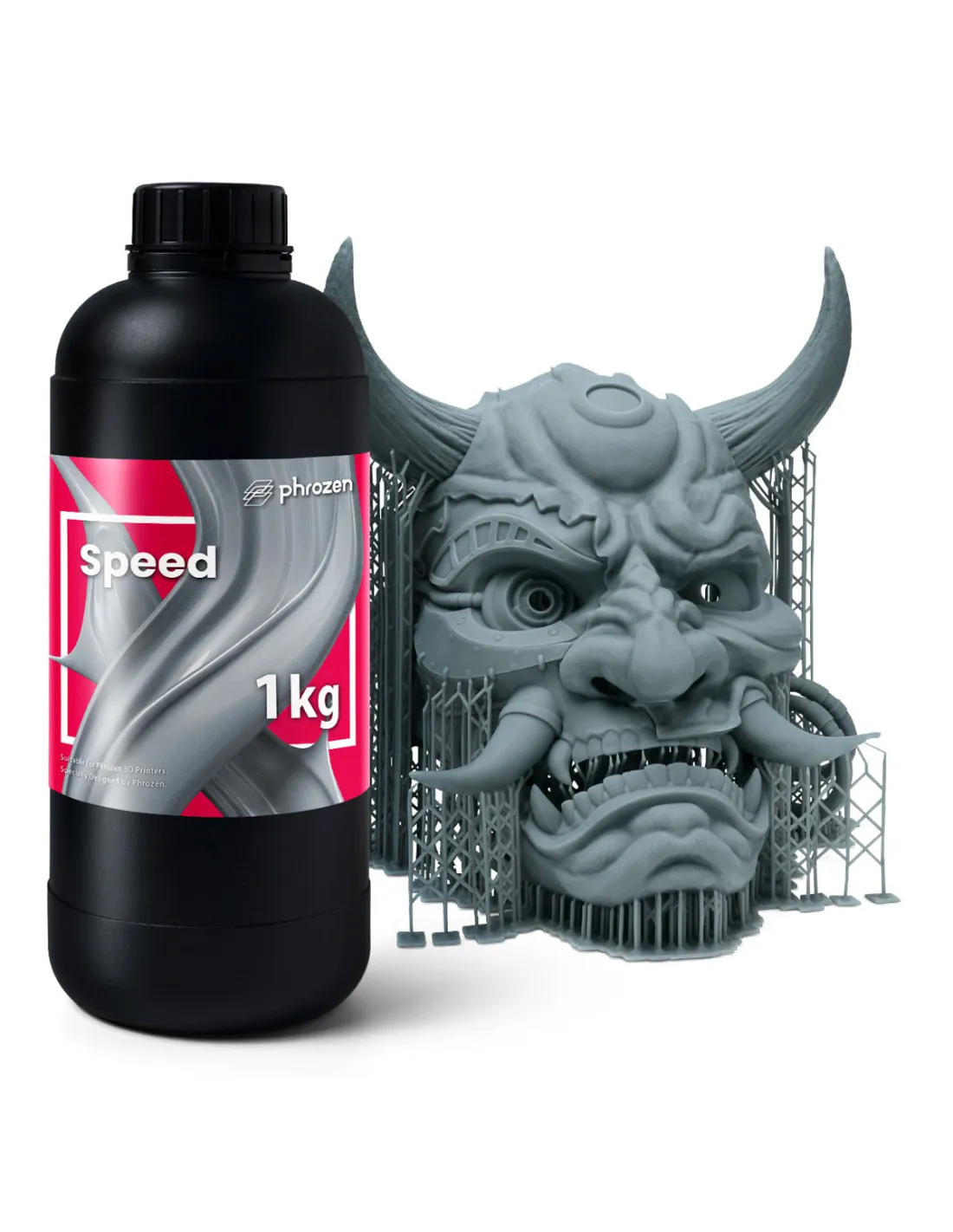

The Phrozen Speed 8x Plus is a photopolymer resin for 3D printing designed to drastically reduce production times: it prints up to 8 times faster than conventional resins, without sacrificing dimensional stability or surface quality. It is the most efficient option for those working with large-format models or requiring rapid prototyping cycles.
Technical specifications
Parameter
Value
Colour
Grey
Format
1 kg
Type
Standard photopolymer resin
Compatible technology
LCD/MSLA 3D printers
Print speed
Up to 8x faster than standard resins
Viscosity
Low
Dimensional stability
High
Large models
Possible in under 6 hours
Storage
Room temperature, darkness, ventilated area
What it is used for
The Phrozen Speed 8x Plus is aimed at users who need fast production of medium and large parts, both in industrial and creative environments. Its low viscosity facilitates vat filling and layer adhesion, making it especially effective for models with large flat surfaces.
Large-scale industrial and functional prototypes
Full-size cosplay accessories and armatures
Masks, helmets and high-volume parts
Scenography and terrain for wargames
Footwear, supports and structural parts printed in 3D
Serial production where cycle time is critical
How to use it
Shake the bottle well before pouring the resin into the printer vat, especially if it has been stored for some time.
Set the print parameters recommended by Phrozen for this resin on your LCD printer model.
Load the prepared file into your slicing software and adjust supports according to the model geometry.
Start the print and monitor the first layers to ensure adhesion to the build plate.
Once printing is complete, carefully remove the part using nitrile gloves.
Wash the part with isopropyl alcohol 99.9% to remove uncured resin. Use an immersion bath or wash station.
Allow to drain and dry the part thoroughly before final curing.
Cure the part under UV light (UV curing station or chamber) for the recommended time to achieve the final mechanical properties.
Usage tips
Vat resin management
The low viscosity of the Phrozen Speed 8x Plus is an advantage for speed, but requires you to keep the vat clean and free of floating cured particles. Filter the resin through a fine mesh strainer every time you return it to the bottle. If you are going to leave the printer idle for several days, empty the vat and store the resin in the original bottle, tightly sealed and protected from light.
Exposure parameters and supports
When printing 8 times faster, layer exposure times are significantly shorter. Always use the exposure profiles specific to this resin for your printer. For very large models or those with pronounced overhangs, reinforce the supports to compensate for the peel forces at each layer, which can be greater at high speed.
Post-processing and curing
Washing with isopropyl alcohol 99.9% is essential to remove surface liquid resin before UV curing. A poorly washed part will have sticky surfaces and inferior mechanical properties. If you produce many parts in succession, renew the alcohol bath frequently to maintain its effectiveness. Final curing in a UV chamber ensures long-term hardness and stability.
Frequently asked questions
Is it compatible with any resin printer?
The Phrozen Speed 8x Plus is compatible with the vast majority of LCD/MSLA printers on the market. To take full advantage of its maximum speed, it is recommended to use it with printers that support very short layer times, such as the Phrozen Sonic MEGA 8K V2. Check the exposure profiles available on the Phrozen website for your specific model.
What liquid is used to wash parts after printing?
The most common and effective method is washing with isopropyl alcohol 99.9%. It efficiently removes uncured resin without damaging the part. Avoid using lower-concentration alcohol, as residual water can interfere with subsequent curing.
How long does it take to print a large model?
Thanks to its high-speed formulation, the Phrozen Speed 8x Plus allows large-format models to be printed in under 6 hours, depending on the total height of the model and the parameters configured on the printer. It is one of the fastest resins available for general use.
Can this resin be used for functional parts or those with mechanical requirements?
The Phrozen Speed 8x Plus offers good tensile strength and dimensional stability, suitable for prototypes and general-use parts. If you need ABS-like properties or greater surface rigidity, you may consider the Resina 3D Phrozen ABS-Like Matte Gray as an alternative.
How should the resin be stored correctly?
Store the resin in its original bottle tightly sealed, at room temperature, in a dark and ventilated place. Exposure to ambient UV light can initiate curing inside the bottle. Always shake before use, as pigments and components may settle over time.
Is UV curing necessary after washing?
Yes. Post-print curing under UV light is essential for the part to reach its final hardness and mechanical strength. Without this step, the part may remain brittle or have sticky surfaces. Using a UV curing chamber is recommended for a uniform result.
What safety measures should be taken when handling photopolymer resin?
Always work with nitrile gloves to avoid contact of liquid resin with skin, as it can cause sensitisation or irritation. Wear a mask if working in poorly ventilated spaces. Avoid eye contact and do not pour uncured resin down the drain; dispose of it as special waste. Cured resin is inert and can be discarded as conventional solid waste.
Are there other 3D printer resins with higher resolution or a different finish?
