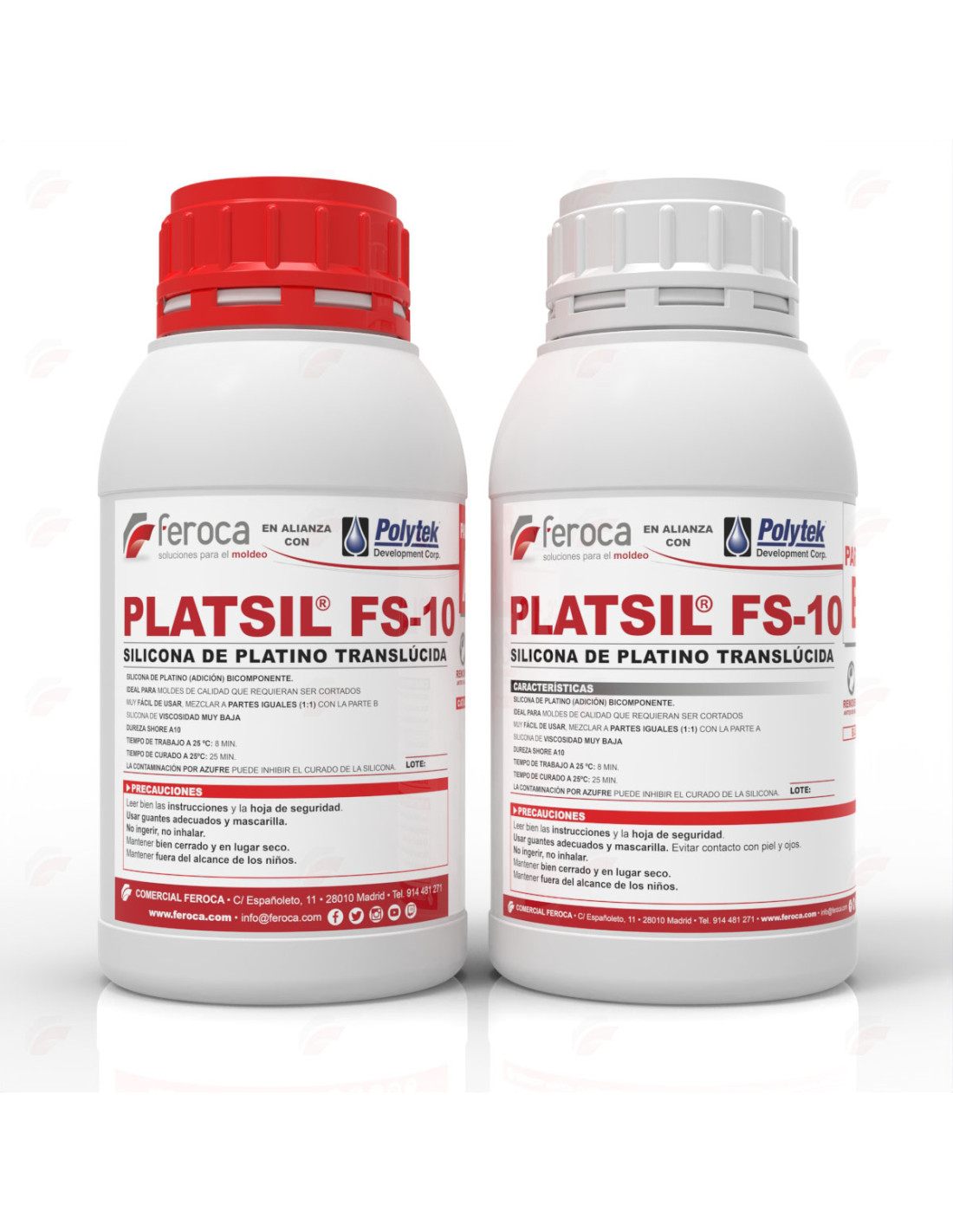

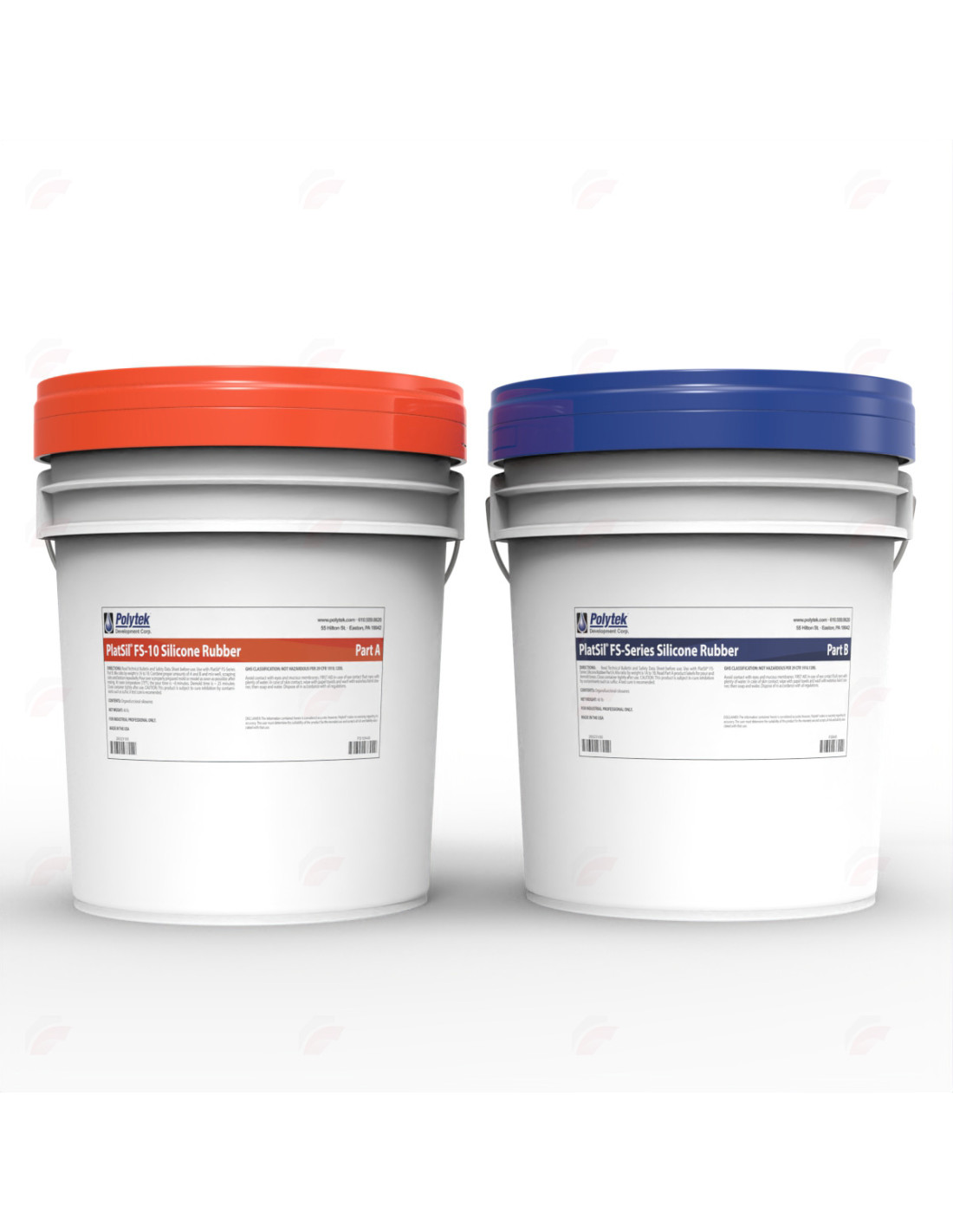

PlatSil FS-10 -Platinum Silicone-
50,82 € IVA incl.
- Platinum Silicone (Addition) translucent.
- Easy to use. Mixture 1A:1B
- Shore Hardness: A13
- Fast and High Strength
The new Silicone FS-10From PolytekOffers truly exceptional performance like no platinum mold silicone has ever had before.
The FS-10From Polytekhas a time of cured very fast 20 to 25 minutes, but with a working time of about 8 minutes, always depending on the ambient temperature, which should be around 23 ºC
The ample working time allows cast silicone comfortably, as well as being perfect for apply it with a brush since it has a moment of gel before curing that does not sag.
All this with a incredible tear resistance, it is practically unbreakable when pulled during difficult demolding operations!
It is very easy to use as it is mixed in equal parts by weight or volume (1A:1B
Nature transparent of the cured silcona makes it a good option for the molds that need to be cut after curing, as the model is visible and the parting lines can be better determined. It is also very useful when making molds of complex parts to ensure that all hard-to-reach parts of the part are filled with the silicone. It is a silicone of casting, but it can be thickened or thixotroped withPlatThixTo be brushed.
PRECAUTIONS:
Contamination by sulfur (e.g., sulfur-based clays), amines, amine compounds (e.g., sulfur-based clays), amine compounds (e.g., sulfur tin, some silicone resins, cured polyester resin, some paints, and some silicone rubbers may inhibit surface curing of platinum-cured rubbers.
Product | Mixture A:B |
Working Time |
Curing Time |
Shore Hardness |
Color |
Mixture Viscosity |
Specific volume |
Contraction |
PlatSil73-15 |
1A:1B by weight or volume | 20 min. | 4-5 hours |
A15 |
Translucent White |
2.500 cP. |
25 in³/lb |
Inappreciable |
PlatSil73-20 |
1A:1B by weight or volume | 5 min. | 1 hour |
A22 |
Translucent Blue |
3,000 cP. |
25 in³/lb |
Inappreciable |
PlatSil FS-10 |
1A:1B by weight or volume | 8 min. | 25 min. |
A13 |
Translucent White |
4.200 cP. |
24.9 in³/lb |
Inappreciable |
PlatSilFS-20 |
1A:1B by weight or volume | 8 min. | 25 min. |
A20 |
Translucent White |
3.800 cP. |
24.9 in³/lb |
Inappreciable |
PLATSIL FS20 BY JUAN VILLA
PLATSIL FS20 MASK IN PLATSIL FS20
NEILL GORTON USING PLATSILFS
- Color
- Translucent White
- Working Time
- 8min
- Curing Time
- 25min
- Shore Hardness
- A13
- Volume Mixing Ratio
- 100A:100B
- Mixed Weight Ratio
- 100A:100B
