3D scanner Revopoint RANGE 2
220100715
Temporarily out of stock
€680.00
822,80 € IVA incl.
822,80 € IVA incl.

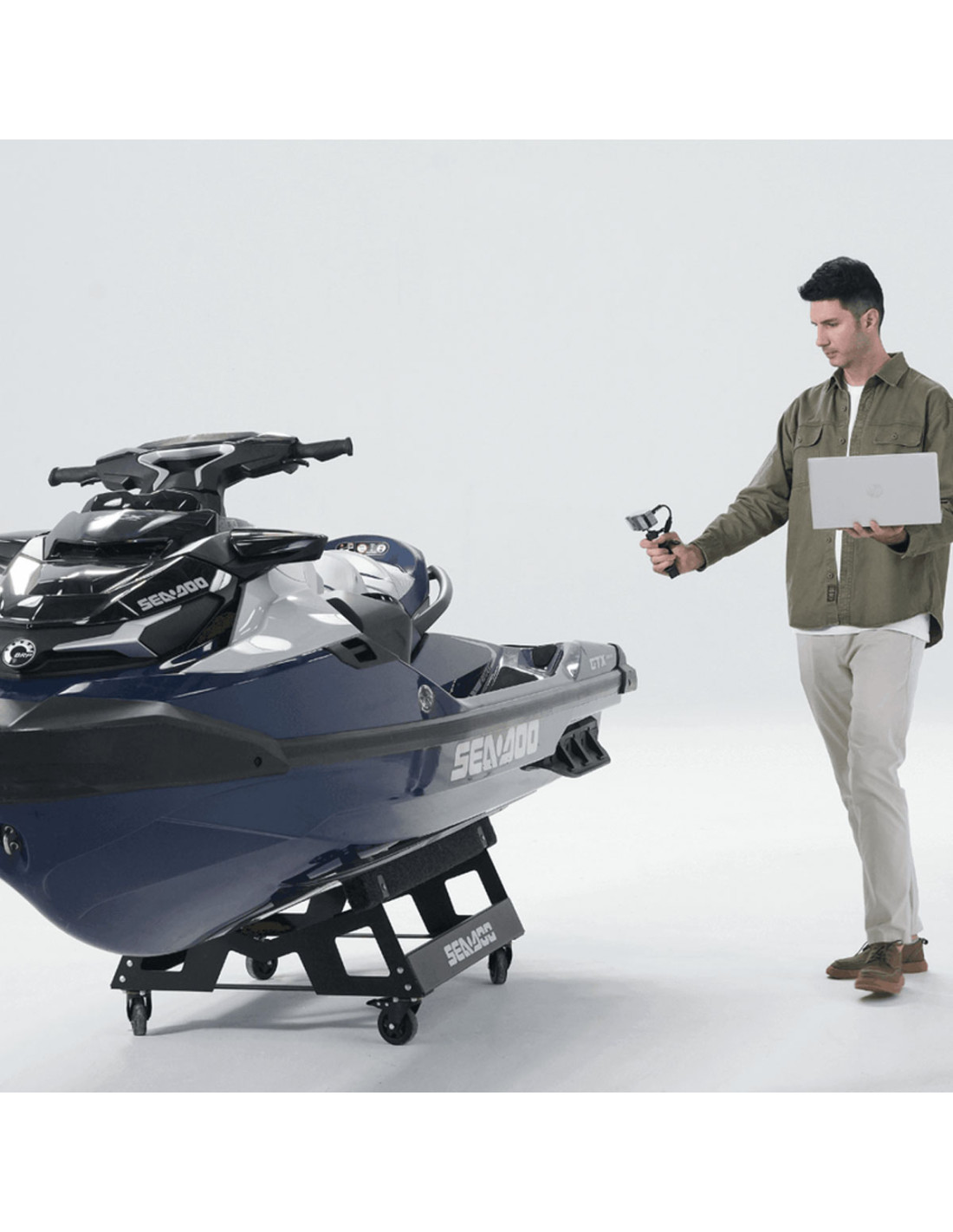

- Revopoint RANGE 2 is a portable 3D scanner designed to capture large objects such as furniture, people and vehicles.
- It offers scanning accuracy down to 0.1 mm, ideal for accurate modeling and reverse engineering.
- It incorporates high-resolution RGB and depth cameras for detailed and color captures.
- Enables efficient scanning with speeds up to 16 fps, improving productivity.
- Compatible with Wi-Fi 6 and USB Type-C, it facilitates connection to mobile devices and PCs.
Broader vision, unlimited creation

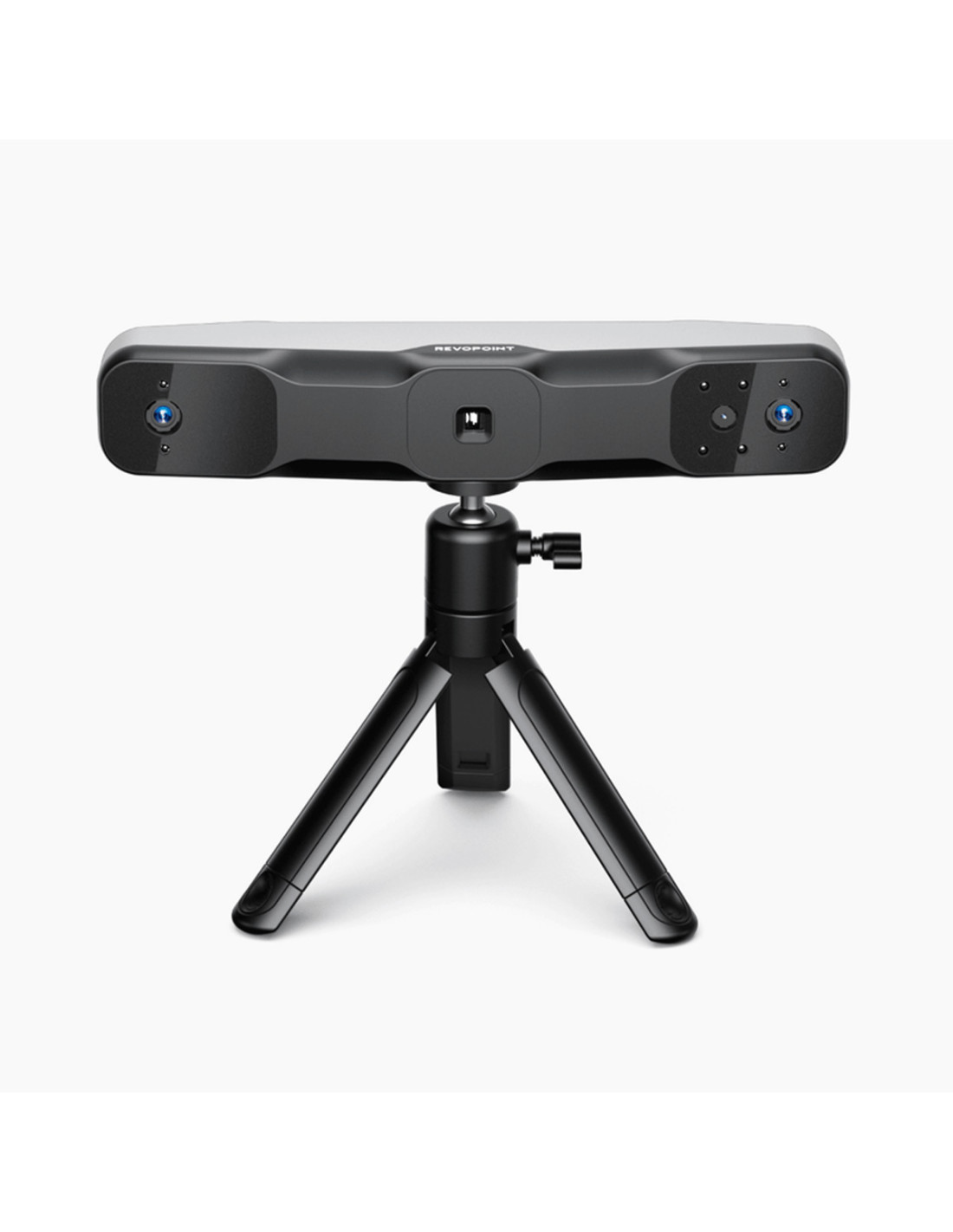

Revopoint RANGE 2 is a portable structured infrared light 3D scanner designed to capture large objects such as furniture, people and vehicles. Its 60% greater capture range and scanning distance offer better tracking and faster scans.
Reliability is important
Capture objects reliably and consistently with the single-frame accuracy of RANGE 2 down to 0.1 mm.
Larger captures
Make scanning large objects easier with the new depth cameras at RANGE 2, which enable a 60% longer working distance of 1,300 mm and a unique 860 mm x 1380 mm capture range for faster and better surface data capture.
Improved camera system
Creates sharper 3D models and captures better color scans with RANGE 2
Higher resolution and depth in RGB cameras.
Up to
2 Megapixels
Camera Depth/RGB Resolution
Up to
0.1 mm
Fused Point Distance
Scans in vibrant colors
Create color-accurate 3D models with the new high-resolution, larger aperture RGB camera from RANGE 2 that captures more color detail and the 4-flash LED illumination system that eliminates shadows for uniform color capture.
Smarter marker tracking
The enhanced tracking system of RANGE 2 provides better frame stitching with the help of motion data from its 9-axis IMU, eliminating bad frames caused by sudden movements or unsteady hands.
UPC
2 cores
1.8 GHz
Position sensors
9-axis IMU
Better connectivity
RANGE 2 has completely upgraded its connectivity options with Wi-Fi 6 for faster, lower latency mobile scanning and USB Type-C for plug-and-play PC connections.
Revo Scan 5. High performance software
Revo Scan 5 is your portal to intuitive 3D scanning and powerful editing. And it runs on just about anything, with full support for iOS, Android, Windows and macOS devices. Export your models in STL, PLY or OBJ formats for compatibility with most cutting, 3D modeling and CAD programs.
One-click post-processing"
Works on virtually any device and OS
Start-up tutorial
Technical Specifications
| Technology: | Dual-camera infrared structured light |
| Single frame accuracy: | Up to 0.1 mm |
| Single-frame accuracy: | Up to 0.3 mm |
| Single capture area at closest distance: | 220 x 425 mm at 400 mm |
| Single capture area at farthest distance: | 860 x 1380 mm to 1300 mm |
| Working distance: | 400 - 1300 mm |
| Distance between points: | Up to 0.1 mm |
| Minimum scanning volume: | 50 x 50 x 50 mm |
| Scanning speed: | Up to 16 fps |
| Position sensors: | 9-axis IMU |
| 3D light source: | Class 1 infrared light |
| Tracking methods: | Feature/Marker |
| Outdoor scanning: | Yes |
| Color scanning: | Yes |
| Scanner weight: | 253 g |
| Dimensions (L x W x H): | 240 x 43 x 46 mm |
| Ready to print 3D models: | Yes |
| Supported operating systems: | Windows 10/11 (64-bit), Android, iOS, macOS |
| External controls: | Three buttons for Start/Pause, Exposure +/- |
| Infrared fill lights: | Yes |
| White flash LEDs: | Yes |
| Output file formats: | PLY, OBJ, and STL |
| Wi-Fi: | Wi-Fi 6 |
| Connector type: | USB Type-C |
| Special object scanning: | Use scanning spray for transparent, dark or highly reflective objects. |
Note:
1. Accuracy indicates how close repeated measurements of an object are to each other. Accuracy measures how close a measured value is to the true value. They were determined in a controlled laboratory. Results may change depending on the operating environment.
2. Class 1 Laser: Avoid direct eye exposure for long periods of time. Consult specific standards for details.
3. Outdoor scans should avoid direct sunlight.
4. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy
